YX18650-22L
YX18650-22L
YX18650-22L
  • image of LFP battery>YX18650-22L
  • image of LFP battery>YX18650-22L
  • image of LFP battery>YX18650-22L
YX18650-22L
Product_Category
LFP battery
Manufacturer
Type
Place of Origin
Encapsulation
RoHS
YES
Price
{{title}}
{{description}}
captcha
{{btnStr}}
Specifications
Typical Capacity: 2200mAh @0.2C Discharge Certifications: CE, RoHS, UN38.3
Charging Time: 3-4 Hours Discharge Temperature: -40°C To 60°C
Type: TRD18650-22L Weight: 42±1.5g
High Light:

Low Temperature Lithium Battery 2200mAh, lightweight Low Temperature Lithium Battery, CE Rechargeable 18650 Cell





Low Temperature cell 2200mAh 18650 Lithium Battery Cell 18650 China Factory

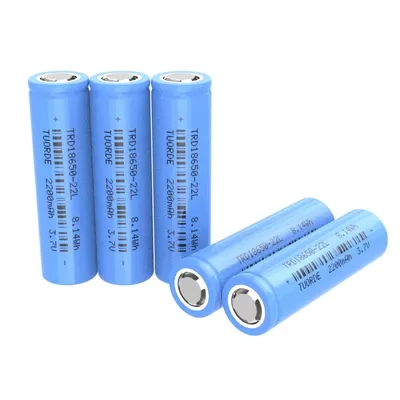

Product Description:
18650 Lithium Battery Cell is a rechargeable cell battery that offers high-performance and high-output. It is designed with a size of 18mm X 65mm and a weight of 42g, that makes it lightweight and easy to carry. With a discharge temperature range between -40°C - 60°C and a storage temperature range between -20°C - 45°C, it provides a reliable and stable performance. Moreover, it has a cycle life of up to 500 times, ensuring the best performance and long-lasting use. This high-performance and high-output battery cell is perfect for a variety of devices.


Features:
1.Product Name: 18650 Lithium Battery Cell
2.Weight: 40g
3.Cycle Life: 400 Times
4.Max Charge Current: 2.2A
5.Discharge Temperature: -40°C - 60°C
6.Capacity: 2200mAh
7.Low temperature Battery Cell
8.Lithium Battery Cell






No. Item Specifications
1 Model No. YX18650-22L
2 Typical Capacity 2200mAh @0.2C Discharge
3 Min capacity 2150mAh @0.2C
4 Nominal voltage 3.6V
5 Standard Charge CC/CV,0.5C,4.20V
6 Standard Discharge CC,02C,2.5V
7 Cut-off charge Voltage 4.20V±0.05V
8 Cut-off charge Current 0.02C(At CVmode)
9 Cut-off discharge Voltage 2.5V
10 Charging Time 3hours(standard charge)
11 Quick Charge Current 2200mA(1C)
12 Quick Discharge Current 1100mA(0.5C)
13 Max Discharge Current 2200mA (1C)
14 Initial Impedance ≤60mΩ
15 Weight 42±1.5g
16 Operating temperature Charging: 0℃~45℃
Discharging:-40℃~60℃
17 Storage temperature -20℃~45℃
18 Storage Humidity ≤75%RH
19 Standard environmental condition Temperature:25±2℃
Humidity:45-75%RH
Atmospheric Pressure:86-106KPA
