| Product Name: | 18650 Lithium Battery Cell | Capacity: | 3000mAh |
|---|---|---|---|
| Color: | Customized | Net Weight: | 49g |
| Safety Features: | Overcharge/Overdischarge/Short Circuit Protection | Discharge Temperature: | -40℃ To 75℃ |
| High Light: |
3000mAh Low Temperature Lithium Battery, Safety 18650 Lithium Battery Cell, High Output Low Temperature Lithium Battery |
||

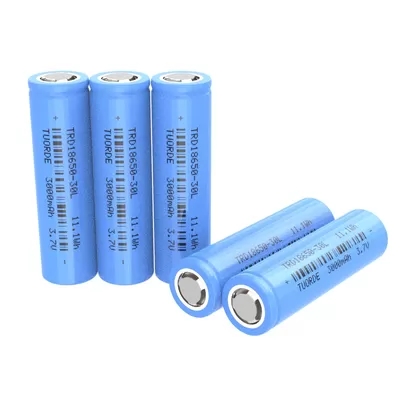

Charge Temperature 3000mAh 18650 Lithium Battery Cell 18650 China Factory high output battery
Product Description:
18650 Lithium Battery Cell is a rechargeable cell battery that offers high-performance and high-output. It is designed with a size of 18mm X 65mm and a weight of 49g, that makes it lightweight and easy to carry. With a discharge temperature range between -40°C - 75°C and a storage temperature range between -20°C - 45°C, it provides a reliable and stable performance. Moreover, it has a cycle life of up to 500 times, ensuring the best performance and long-lasting use. This high-performance and high-output battery cell is perfect for a variety of devices.
Features:
1. Product Name: 18650 Lithium Battery Cell
2. Weight: 49g
3. Cycle Life: 500 Times
4. Max Charge Current: 10A
5. Discharge Temperature: -40°C - 75°C
6. Capacity: 3000mAh
7 .Low temperature Battery Cell
8. Lithium Battery Cell
9. Portable Battery Cell
| No. | Item | Specifications |
| 1 | Model No. | YX18650-30L |
| 2 | Typical Capacity | 3000mAh @0.2C Discharge |
| 3 | Min capacity | 29000mAh @0.2C |
| 4 | Nominal voltage | 3.7V |
| 5 | Cut-off charge Voltage | 4.20V±0.05V |
| 6 | Cut-off discharge Voltage | 2.5V |
| 7 | Charging Time | 3hours |
| 8 | Standard Charge Current | 1.5A(0.5C) |
| 9 | Max. Charge Current | 3A(1C) |
| 10 | Max. Continuous Discharge Current | 10A |
| 11 | Max. Pulse Discharge Current | 30A(2s) |
| 12 | Initial Impedance | ≤20mΩ |
| 13 | Weight | 49±1.5g |
| 14 | Operating temperature | Charging: 0℃~45℃ Discharging: -40℃～75℃ |
| 15 | Storage temperature | -20℃~45℃ |
| 16 | Storage Humidity | ≤75%RH |
| 17 | Standard environmental condition | Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA |
